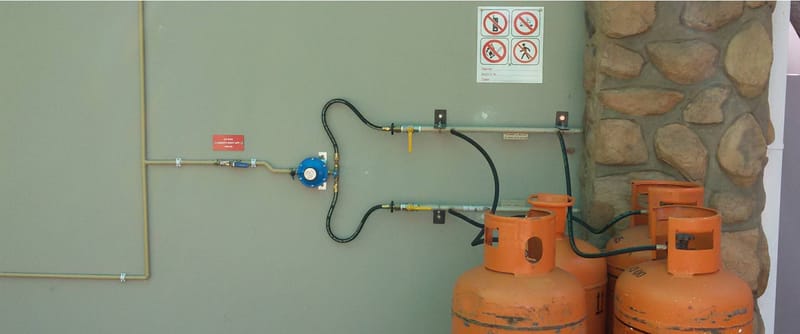

LP Gas installations without a valid up to date CoC may lead to dire consequences for home owners.
With the high cost of electricity gas appliances in the home are becoming more popular. Some homeowners are unaware that permanent gas installations such as gas ovens, hobs, heaters and fireplaces requires an up to date CoC.
Should there be a fire in a home with a gas installation with no up to date compliance certificate, your insurance company could possibly reject the claim. A Gas CoC is valid for five years but some insurance companies may require the CoC to be renewed more frequently.
Frequently Asked Questions
Do I need a Coc for my gas installation?
- A CoC is proof that your gas installation is safe and complies with the rules and regulations as laid out in the South African National Standards (SANS) 10087-1.
- The law requires that you be in possession of Certificate of Conformity for gas installations at all times, as does your insurance company. If your property suffers damage due to a gas fault, your insurance company will expect you to produce a valid certificate. Not being able to produce one may invalidate your claim.
When must a CoC be issued?
A Certificate of Conformity (CoC) must be issued for a PERMANENT installation:
- On completion of a new gas installation;
- After any modification, alteration or maintenance of an existing gas installation;
- On change of ownership of a property housing an existing gas installation. (When you sell your property)
What is a permanent gas installation?
- Legislation deems a permanent gas installation to be a gas installation that is a fixture in a building, immovable and not of a temporary nature. This would include all build in gas equipment – Gas fires, Heaters, Gas Braais, Stoves, Ovens and Hot water systems.
- Movable gas heaters and gas braais on wheels are seen as temporary and do not require a CoC.
How long is a CoC valid for?
- A CoC is valid for five years providing the installation has not been altered in any way.
- Any maintenance or alterations done to your gas installation requires the issuing of a new CoC for the ENTIRE system.
- An installation must be inspected and a CoC issued when a property is sold.
How regularly must a LPG installation be serviced?
- According to legislation, the manifold system (which includes the regulator/s) should be inspected and serviced at intervals not exceeding five years.
Am I allowed to have a gas cylinder inside my house?
- Yes, according to the SA National Standards (SANS);
- if you live in a flat, you may have a maximum of 9kg gas either stored or permanently installed inside;
- if you live in either a free standing house, cluster house or in group housing (not exceeding two storeys), you are entitled to a maximum of 19kg. There are, however, strict regulations regarding the positioning of gas cylinders inside a flat or house as well as necessary ventilation.
Regulations
- Gas bottles may not be installed:
- Less than 1 meter sideways from doors and windows.
- Less than 2 meter from drains and air vents or any other place where the gas can gather if the bottle leaks.
- Less than 3 meter below windows unless a non-combustible roof are installed between the gas bottles and the bottom of the window.
- Less than 1 meter from the property boundary wall unless it is a fire wall, at least 1.8 meter tall and there are no ventilation gaps in the wall (acceptable if up to 48kg X 2 gas are stored)
- Less than 3 meter from the property boundary wall (if more than 48kg X 2 gas are stored).
- Less than 5 meter sideways away from a switchable electrical point or plug switch and socket or electrical motor or pool pump etc. (but not a light bulb) and not less than 1.5 meter above the gas bottles.
- Further Requirements
- If you have your gas bottle contained within a gas cage then the top of the gas bottle must be 300 mm below the window (a 19Kg bottle is between 800 – 900mm tall).
- Light bulbs cannot be less than 1.5 metres above a gas bottle.
- Only class 1 or 2 copper pipes, or other approved gas piping, may be used
This is not the same copper piping used for plumbing. - Copper pipes going through a wall must be sleeved
- Approved flexible gas hose may not be more than two meters long and may not go through any partition (including wood, dry wall, cupboard wall etc)
Birds eye view for cylinder placement in relation to boundary walls – SANS 10087-1:2013
General Safety Distances – SANS 10087-1:2013
Distances from an Electric Fence – SANS 10087-1:2013
Distances and regulations relating to thatch roof houses – SANS 10087-1:2013
Criteria for placing bottles below windows – SANS 10087-1:2013
Safety distances relating to items in proximity to the hob/stove – SANS 10087-1:2013
Find an SAQCC Gas Authorized Practitioner
In Terms of the Occupational Health and Safety Act, 1993, the Pressure Equipment Regulations require that all Gas installations must only be carried out by a competent person, registered by an organisation approved by the Chief Inspector of the Department of Labour.
The South African Qualification & Certification Committee for Gas, (SAQCCGas) has been officially appointed and mandated by the Department of Labour to register gas practitioners, as competent within a specific scope of work.
